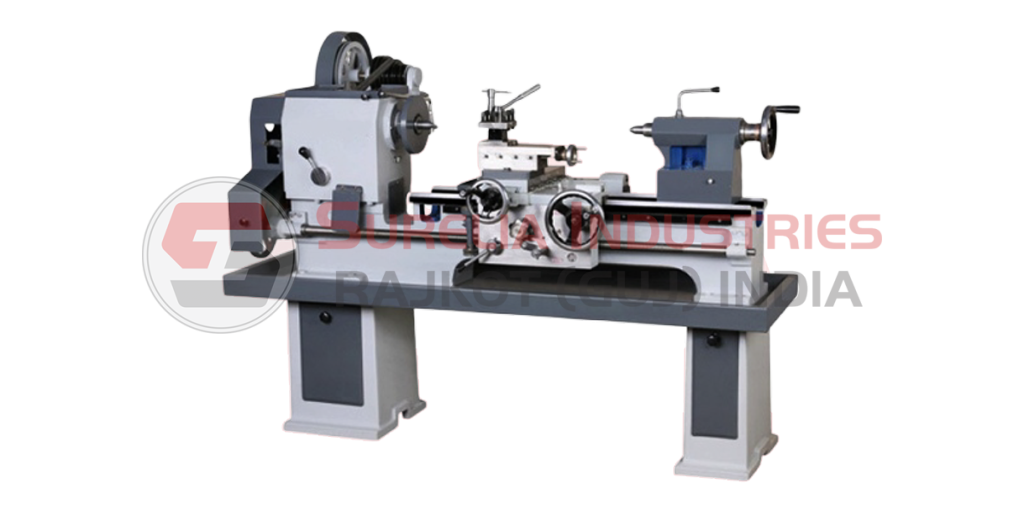

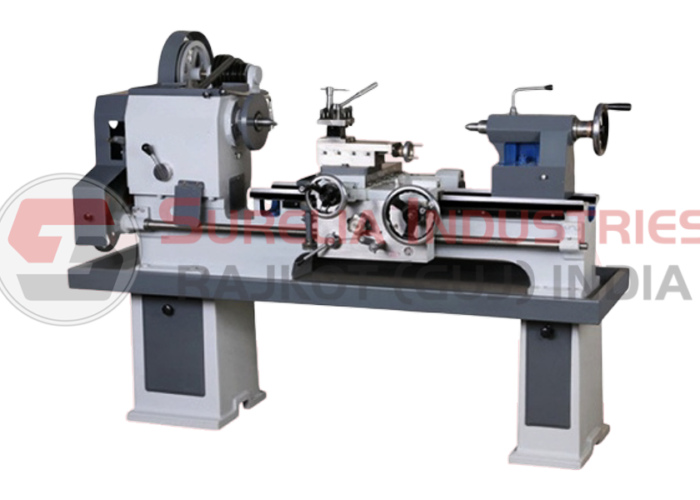

Surelia Industries is an esteemed organization that offers excellent quality Medium duty Lathe machines. We are the experienced Medium Duty Lathe Machine manufacturers making machines that are used for various applications such as tool room purpose, & metalworking.
The main components of the Medium duty Lathe machine are tool post key, motor pulley, V belt, center adapter, chuck plate, change gear set & switch.
Short Details Of Product
- Height of Center: 215mm (8.5”) & 255mm (10”)
- Width of Bed: 280mm (11”)
- Swing Dia. Over Bed: 400mm (16”)
- Swing Dia. Over Cross Slide: 280mm (11”)
- Spindle Bore: 50mm (2”) & 78mm (3.1”)
- Admit Between Canters: 380mm to 1115mm
All Details Of Our Product
- Apron is fully enclosed oil bath system with lever type arrangement or automatic feeds.
- Color options are Emerald Green/light Grey & Steel Grey (Two-tone)
- Hexagonal/Square shaped Tailstock with hardened & ground tailstock spindle made from alloy steel having external & internal grinding.
- Bed made of 25 Grade Cast iron of 180 BHN hardened, inspected with micro level, hardness tester & straight edge. The bed is induction hardened processed with latest technology.
- Boring of Head Stock is performed on WMW boring machine fitted with inspected hardened & ground spindle made of alloy steel.
We supply a wide range of Medium Duty Lathe Machines with strong bed casting made of close-grained cast iron. These machines perform tasks efficiently without vibrations even under high-pressure & heavy load.
- Width of Bed – Up to 280 mm
- Power – Up to 22 kw
- Height of Centre – Up to 8.5(215mm)”
- Automatic Grade – Semi-Automatic
- Voltage (V) – Up to 440
- Center Height – Up to 215mm
- Length of Bed – Up to 56 feet
- Type of Bed – Pedestal
Standard Tail Stock specifications
- Spindle Diameter – 2″ – 50 mm
- Spindle Travel – 6.1/2″ – 165 mm
- Spindle Morse Taper – MT – 4
Standard Head Stock specifications
- Number of Spindle Speed – 6
- Range of Spindle Speed – 30 to 700 RPM
- Spindle Bore – 2″ – 50 mm/3″ – 75mm
- Spindle Threads – 6 TPI
- Spindle Morse Taper (Inside) – MT – 6
| Standard Technical Specifications | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications | Admit Between | Width of Bed | Swing Dia. Over Bed | Swing Dia. Over Carriage | Swing Dia. Over Cross Slide | Swing in Gap Bed | Weight | Floor Space | ||||||
| MODEL | Bed Length | Center Height | 8.5″ | 10″ | 8.5″ | 10″ | 8.5″ | 10″ | 8.5″ | 10″ | KG | L x W | ||
| SIMD – 4 | 4.5ft(1370mm) | 550 (21.5″) | 280 (11″) | 400 | 480 | 280 | 380 | 200 | 300 | 650 | 800 | 650 | 1600 x 1100 | |
| SIMD – 5 | 5ft.(1600mm) | 700 (27.5″) | 700 | 1800 x 1100 | ||||||||||
| SIMD – 6 | 6ft.(1830mm) | 1000 (40″) | 800 | 2100 x 1100 | ||||||||||
| SIMD – 8 | 8ft.(2440mm) | 1500 (60″) | 1000 | 2700 x 1100 | ||||||||||
| Bed Type | 2V & Vflat Typed | INDUCTION Hardened & Precisely Grounded Bedways | ||
| Spindle Speeds (In V-Belt Driven) | 8 Speeds | 30 to 700 rpm | ||
| Spindle Speeds (In All-Geared Headstock) (OPTIONAL) | 45 to 2400 rpm | |||
| Spindle Nose Type | Threaded 6TPI | MT-6 | A2-4 (OPTIONAL) | |
| Spindle Bore | 52mm (2″) | |||
| Width of Bed Gap In Front of Face Plate | 140mm (5.5″) | |||
| Cross Slide Travel | 240mm (11″) | |||
| Top Slide (Compound) Travel | 130mm (5.1″) | |||
| Tool Sank Size | 25mm (1″) | |||
| Tailstock Ram Dia. | 50mm (2″) | |||
| Tailstock Quill Travel | 150mm (6″) | |||
| Tailstock Taper Size | MT-4 | |||
| Nos. of Feeds for LONGITUDINAL (With Change Gears) INCH & MM | Infinitely Variable | |||
| Nos. of Feeds for TRANSVERSE (With Change Gears) INCH & MM | ||||
| Nos. of Feeds for LONGITUDINAL (With Norton Gear Box) INCH & MM | 32 / 0.068 to 1.02 mm/rev. | |||
| Nos. of Feeds for TRANSVERSE (With Norton Gear Box) INCH & MM | 32 / 0.012 to 0.185 mm/rev. | |||
| Transverse Movement in MM | 240 | |||
| Nos. of Threads & Range (Norton Gear Box) | 32 in INCH | 15 in MM | ||
| 4 to 60 TPI | 0.5 to 12 | |||
| Lead Screw Dia. / TPI | 31.75mm / 4TPI | |||
| Elc. Power HP Requires | 1.5HP / 1 kw | 1440 RPM | 3 Phase | 50Hz |
| Standard Accessories | Recommanded Accessories (OPTIONAL) | |
| INDUCTION Hardened & Precisely Grounded 2V & 2Flat type Bed Ways | Dog Chuck / Tru Chuck | |
| Dog Chuck | 1no. | Steady Rest. |
| Chuck Back Plate | 1no. | Follow Rest |
| 1.5HP. 3Phase, 1440 RPM Elc. Motor | 1no. | Face Plate. |
| Motor Pulley | 1no. | All-Geared Headstock |
| V-Belt | 1no. | Norton Gear Box having INCH / MM Threads |
| R/F Switch + wiring Complete | 1Set. | Electro Coolant Pump with Tank and Stand Fittings |
| Spindle Nose Sleeve | 1no. | Taper Turning Attachment |
| Dead Centers | 2nos. | Anti-Vibration Leveling Pads Set. |
| Tool Post Key | 1no. | Revolving Center |
| Service Spanner Set. | 1Set. | Machine Lamp Stand |
| Alen Keys Set | 1Set. | Quick Change Tool Post. |
| Change Gear Set INCH / MM | 1Set. | Tool Post Grinding Attachment. |
| Key Cutting Attachment. | ||
| Milling Vice. | ||
| 10″ Center Height | ||
| Splash Guard | ||
| COMPLETE CNC CONTROLLED RETRO FITTING HAVING LATHE MACHINE | ||
